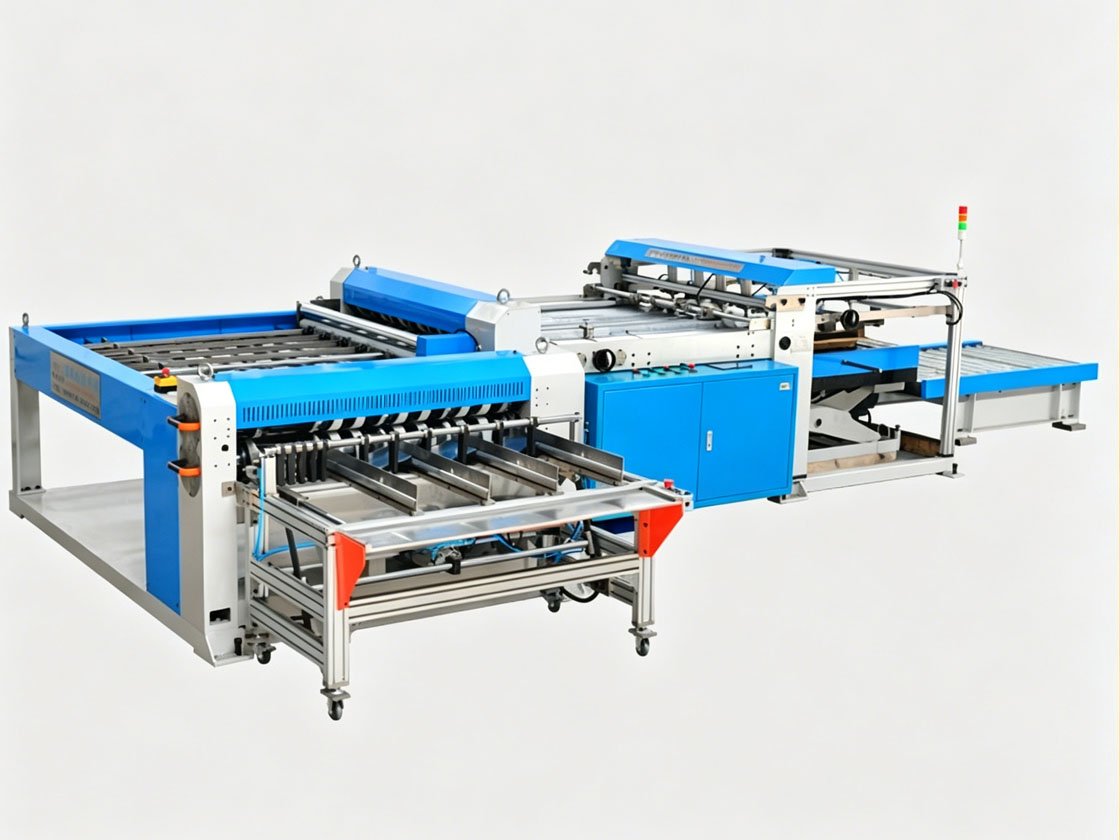

Automatic Duplex Slitter is a high-precision automatic shearing equipment dedicated to the can-making industry. Its core function is to accurately cut large tinplate sheets into rectangular blanks required for can production through two consecutive cutting processes: longitudinal slitting and transverse shearing.
It 's composed of the feeding machine, the first feeding table, the high precision round cutter cutting machine, the second feeding table, the high precision round cutter cuting machine, and the automatic collecting table.
The slitter main shaft is made by imported machining center and the round cutter material is high quality carbide with high shearing accuracy The electrical and conlrol systems of the equipment adopt the main brands of the word. and the main bearings are made of NSK in Japan. They are equipped with double sheet detection system to ensure stable operation.
Technical Parameters:
Capacity | 32 sheets/min |
Sheet Thickness | 0.15-0.5mm |
Applicable Sheet Size | L600-1200mm, W600-1200mm |
Right-angle Slitting Deviation | ≤0.05mm |
Max. First-pass Slitting Strips | 6 |
Max. Second-pass Slitting Strips | 12 |
Round Cutting Knives | 5+8 |
Power | 10KW |
Dimension | 6650×3500×1600mm |
Weight | 6500kg |
