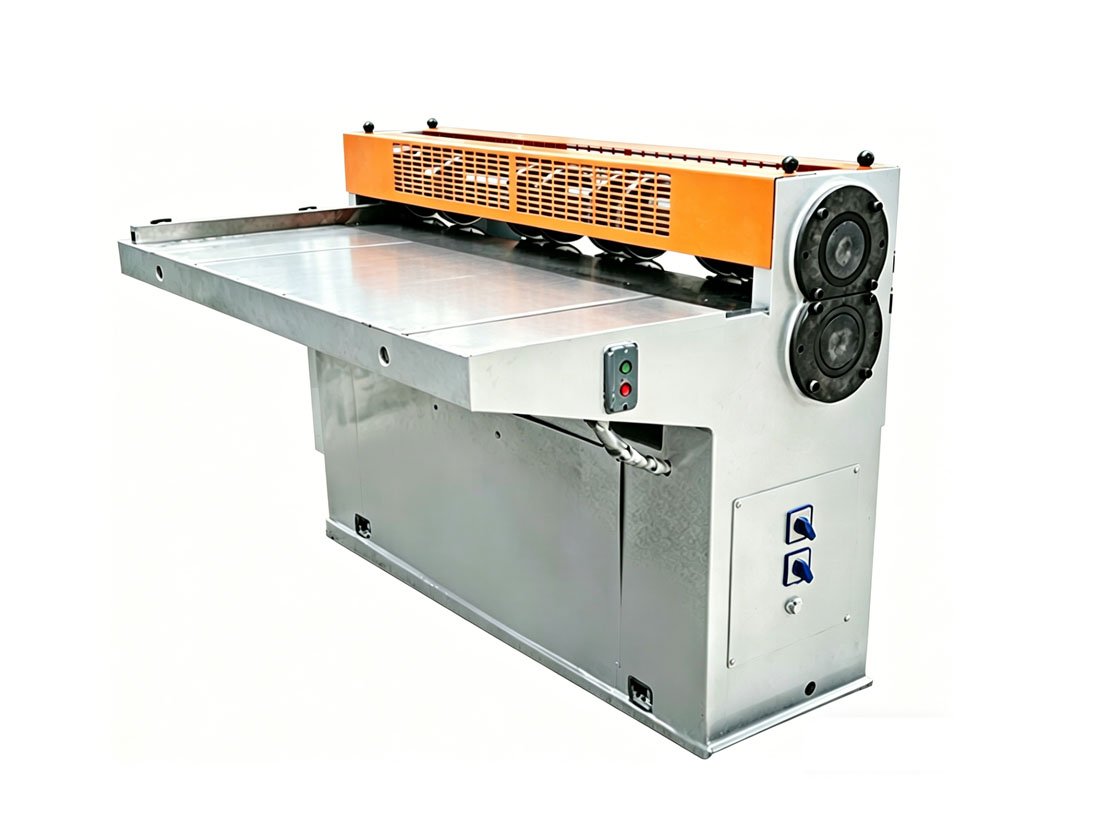

Semiauto Slitter is a special thin-plate cutting equipment for the tin printing and can-making industry. It is specially designed for tinplate (tinned thin steel sheet) and serves as the core blanking equipment for the processing of three-piece cans, food cans, chemical cans and other can bodies. With manual auxiliary feeding and positioning plus mechanically driven shearing, it cuts large sheets of tinplate into standard-sized sheets required for can body welding.
l Excellent adaptability to thin plates: Specially designed for tinplate with a thickness of 0.15mm to 0.5mm, it produces no curling edges or burrs during shearing, features high cutting precision, and meets the process requirements for subsequent resistance welding.
l Flexible and efficient operation: With manual feeding and positioning, it allows quick switching of cutting sizes for different can types, adapting to multi-variety, small-to-medium batch can production without the need for complex CNC programming.
l Stable and durable structure: Equipped with a high-strength frame and wear-resistant blades, it resists wear even after long-term tinplate shearing, has low maintenance costs, and is suitable for continuous operation in can-making workshops.
l Comprehensive safety protection: Fitted with safety protective guards and material-pressing interlocking devices, it prevents the plate from ejecting during shearing and avoids injuries caused by misoperation, making it well-suited for workshop production environments.
Technical Parameters：
Max. Sheet Width | 1050-1300mm |
Min. Sheet Width | 38mm |
Standard Blade | 8 Pairs |
Sheet Thickness | Up to 0.4mm |
Power | 1.1-1.5kW |
Dimension | L1470 (1720) x W1000 x H1100mm |
