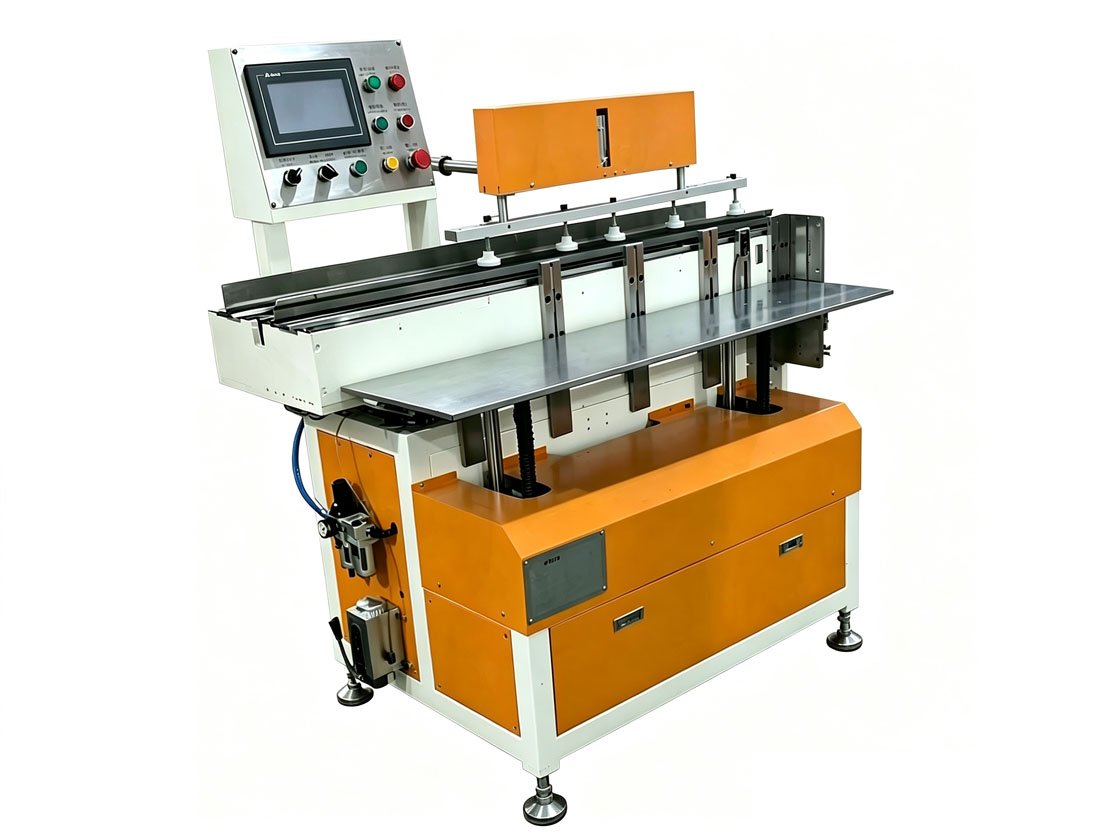

Auto Double-track Feeder is a core supporting conveyor equipment for lid production lines. It adopts a dual-track parallel conveying structure and servo-driven precise feeding, and is equipped with deviation correction, material detection and anti-stacking functions. It can be linked with presses to realize uninterrupted automatic transfer of tinplate sheets. The feeding process is stable and efficient, effectively protecting the coating on the iron sheet surface and greatly improving the automation level of the can-making production line.
Main Structure
Dual-Rail Conveyor Frame: High-strength welded frame with two independent conveying channels, stable operation and high deformation resistance.
Servo Conveyor Drive Unit: Servo motor combined with timing belt / chain transmission, with adjustable feeding speed and fast start-stop response.
Deviation Correction Mechanism: Adjustable side guides and limit components prevent tinplate strip material from drifting and jamming.
Material Detection Sensor Group: Photoelectric sensors enable automatic detection and alarm shutdown for material shortage, material blockage and overlapping sheets.
Pneumatic Limit Sorting Module: Accurately separates sheets to ensure orderly single-sheet conveying and prevent double-sheet feeding.
HMI Control System: Equipped with a touch creen for parameter setting, speed adjustment, production counting and fault indication.
Technical Parameters:
Strip Length | 300-1100mm |
Strip Width | 80-315mm |
Strips Storage Height | H300-400mm |
Capacity | 50-60 times/min |
Power | 1.5kW |
Dimension | L1400x W1300 x H1450 mm |
