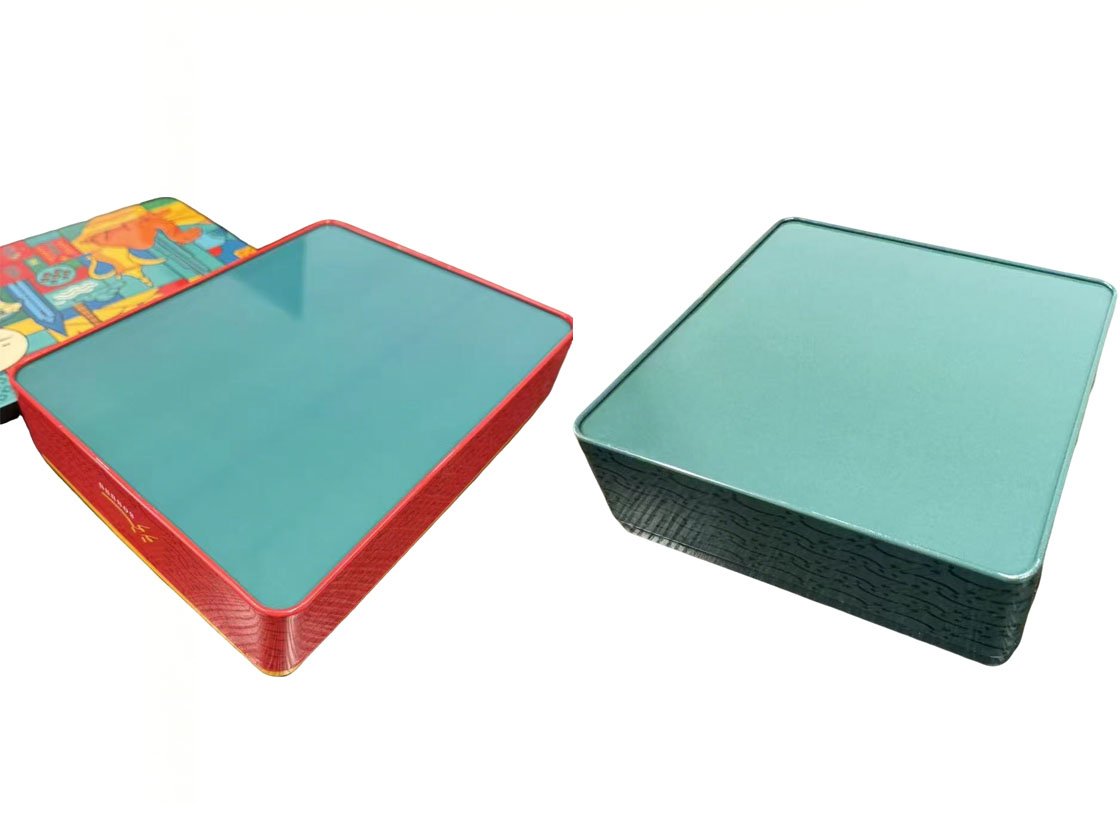

The bottom clinching machine realizes automatic bottom cap feeding, fitting and seaming sealing, permanently locking the can body and bottom cap together to form a finished empty can.
Working Principle
Can body feeding: Can bodies are conveyed upside down and positioned separately.
Bottom cap feeding: Bottom caps are automatically sorted, conveyed and positioned via vacuum suction or mechanical positioning.
Bottom fitting pressing: The upper die presses down to accurately fit the bottom cap onto the bottom of the can body.
Double seaming sealing:
a) First seaming (pre-seaming): The seaming rollers feed radially to interlock the flanged edge of the can body with the hooked edge of the bottom cap.
b) Second seaming (compacting): The rollers feed forward again to press the interlocked part into tight five-layer seams and fully compress the rubber gasket.
Technical Parameters:
Can Type | Round & Square Can, Lock Seamed Can or Welded Can |
Can Size | 50x50- 300x300mm |
Can Height | H50-H300mm |
Sheet Thickness | T0.18-0.35mm |
Capacity | 15-30 cans/min (Customizable) |
Power | 3.5 kW |
Dimension | L1800 x W1200 x H1900mm |
